48V 100W magnetic track lighting switching power supply
As a professional switch-mode power supply manufacturer with years of experience in China, Guangzhou Yuxiang's LED ultra-fine linear semi-filled resin power supply adopts innovative designs and ultra-durable components, ensuring extremely stable operation, reliable quality, and perfect cost-performance ratio. You can rest assured when purchasing. Our products are exported to multiple countries and regions including Southeast Asia, Australia, the Americas, Africa, the Middle East, and Europe. We sincerely look forward to collaborating with you in the near future to create a bright future together!
Send Inquiry
Product Description
Product Highlights

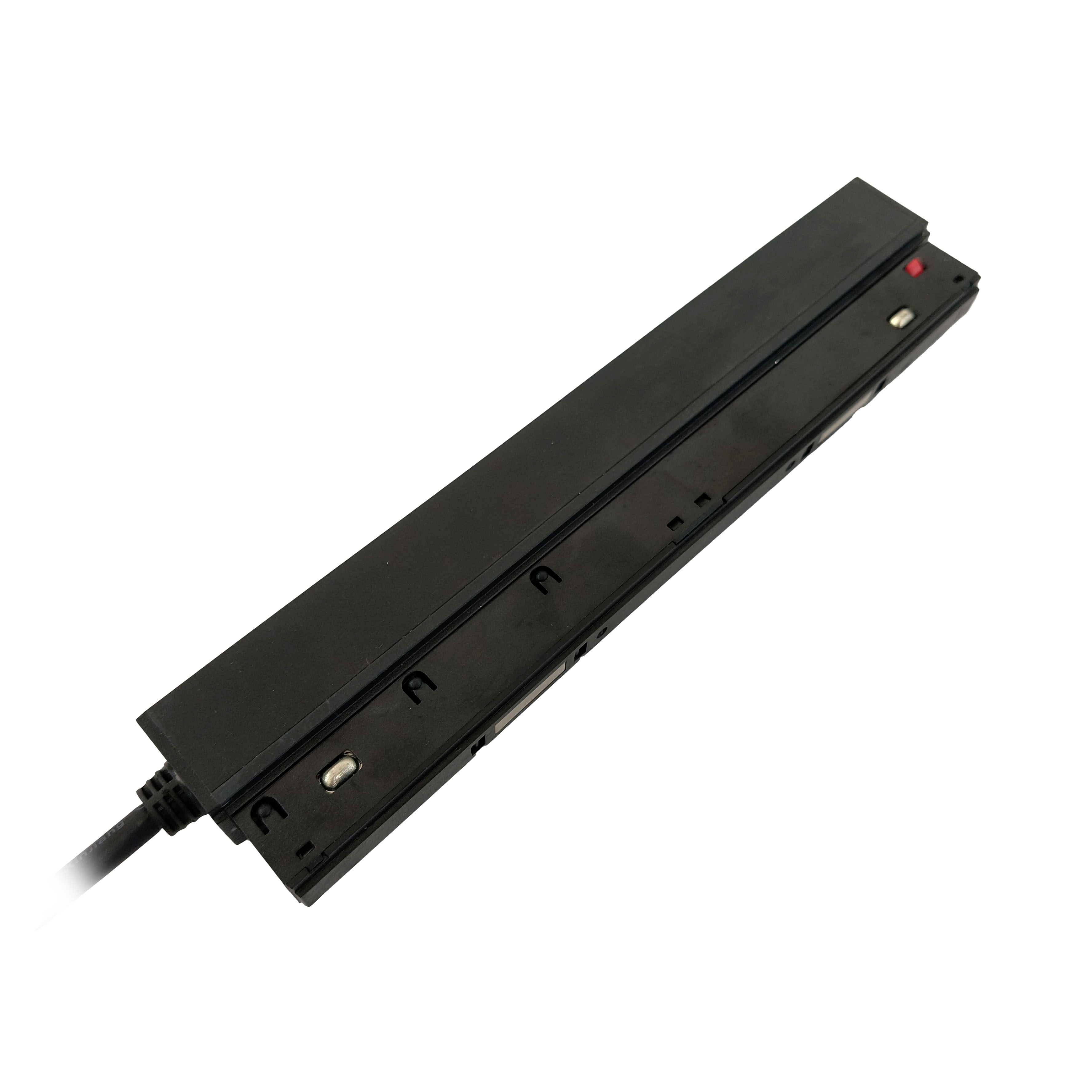

Magnetic Quick-Mount: Attaches magnetically to the track end; simple installation and plug-and-play replacement save time and effort during electrical installation.
Stable Constant-Voltage Output: Minimal voltage fluctuation ensures flicker-free lighting, protects eyesight, and extends the lifespan of the magnetic lights.
Comprehensive Safety Protection: Includes short-circuit, overload, and overheat protection, with automatic power cutoff in the event of a fault.
Slim & Compact Profile: Small size allows for concealed installation without compromising the aesthetics of the ceiling.
Low Noise: Built-in filtering circuitry ensures quiet operation with no audible humming or buzzing.
Wide Voltage Input: Compatible with standard domestic AC 220V mains; select versions support a wide voltage range (110–240V) for international use.
High Conversion Efficiency: Energy-efficient with low heat generation; stays cool even during prolonged operation.

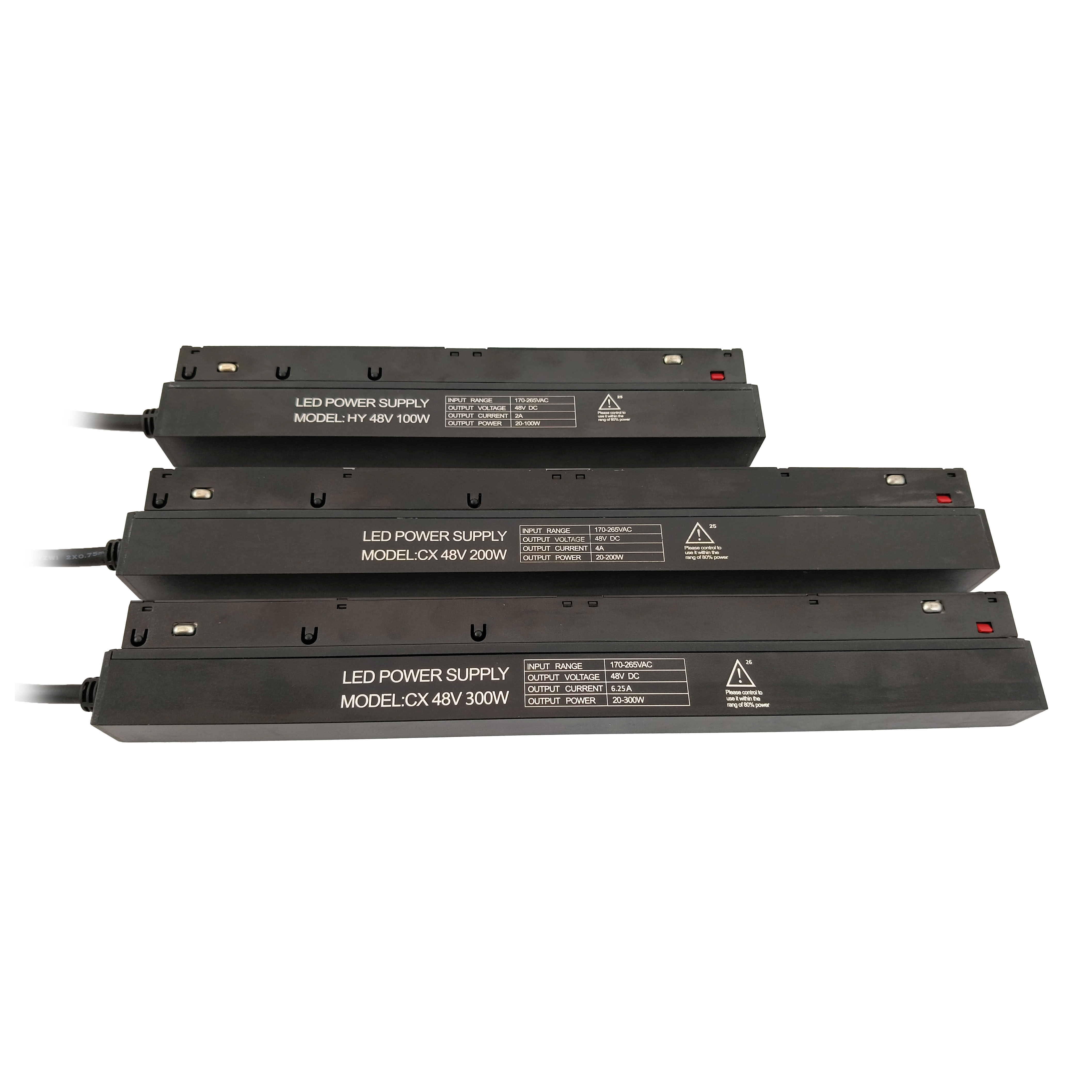

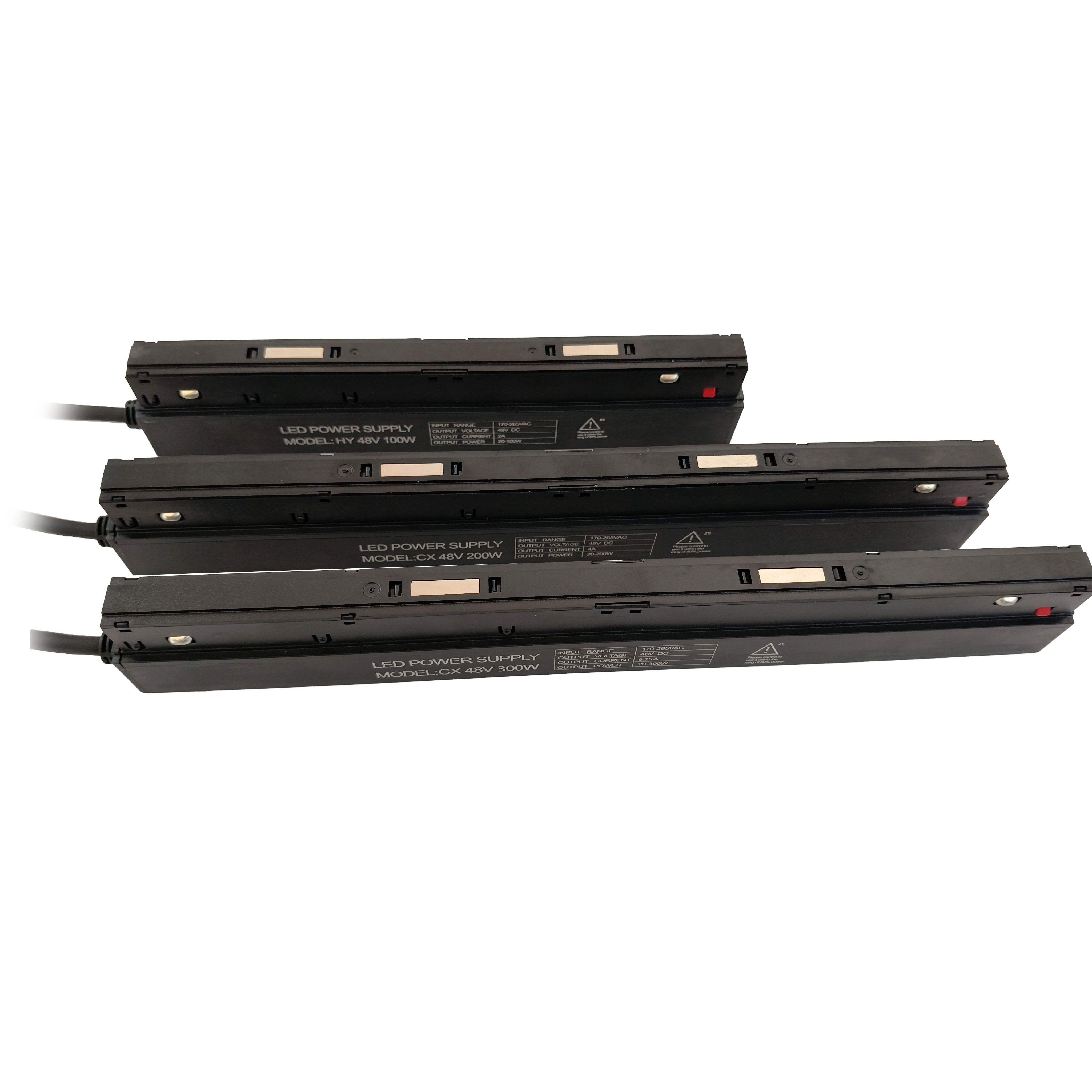

Selectable Power Ratings: 100W / 200W / 300W
Housing Material: Metal casing for excellent heat dissipation.

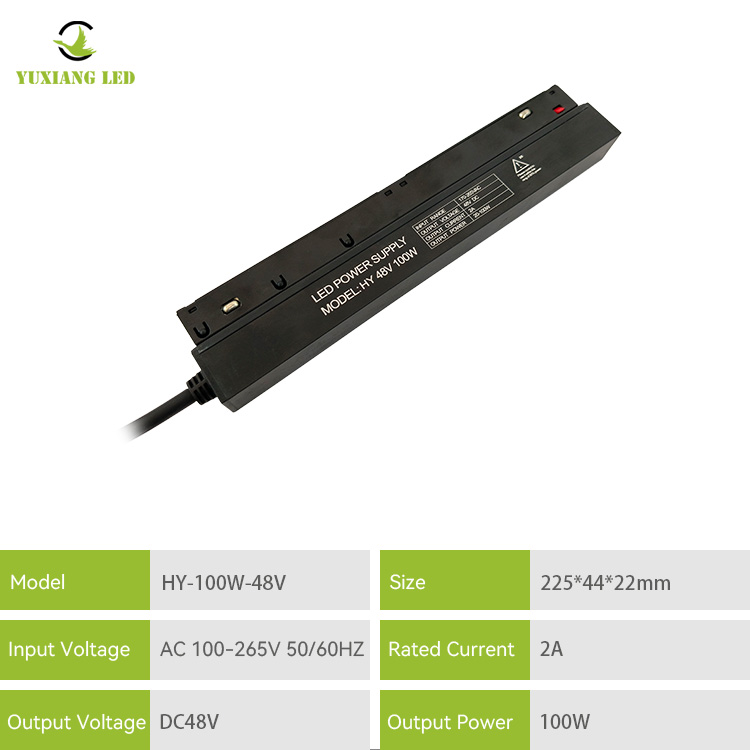

Product Parameters
| Product model | HY 48V 100W |
| Input voltage range | AC 100-265V 50/60HZ |
| Output voltage | DC48V |
| Output current | 2A |
| Output power | 100W |
| Output voltage accuracy | 0.5% |
| Work efficiency | 920% |
| Overload protection | 105-150% hiccup mode, automatic recovery |
| Overvoltage protection | 100-135% diode clamp, cut off output, automatic recovery |
| Operating temperature humidity | -20°C~+50°C，20%-90%RH |
| Safety certification | CE,ROHS |
| Product size | 225*22*44mm |
| Product weight | 0.378KG |
| Package/Weight | 50PCS/CTN, 19.8KG |
Features & Applications
Installation Instructions
1. Disconnect the power supply and ensure the mains power is turned off.
2. Align the magnetic power connector with the end of the magnetic track and snap it securely into place.
3. Connect to 110/220V mains power and secure the power cable.
4. Install the magnetic light fixtures one by one, then power on to test.
5. To add or remove lights, simply detach the fixtures; no modifications to the LED power supply are required.
Precautions
1. Must be used with compatible low-voltage magnetic tracks; do not mix with standard tracks.
2. Do not exceed the rated power load; maintain a 20% safety margin.
3. Install in a ventilated area of the ceiling; do not fully enclose or wrap the unit, to ensure proper heat dissipation.
4. Do not use outdoors or in damp environments; select waterproof models for humid areas.
5. Always disconnect the power supply before installation or maintenance to prevent electric shock.
The magnetic track lighting switching power supply Key Applications
1. Residential "No-Main-Light" Design: Provides power for magnetic track lighting systems in living rooms, bedrooms, and studies; low-voltage operation ensures safety and soft, pleasant lighting.
2. Commercial Retail Lighting: Suitable for clothing stores, bubble tea shops, showrooms, and window displays; allows for flexible reconfiguration by easily adding or removing magnetic fixtures.
3. Office Spaces: Magnetic track lighting for offices and conference rooms, providing targeted accent lighting.
4. Exhibition Halls & Galleries: Highlights exhibits with focused lighting; allows for fixture adjustments without rewiring.
5. Clubs & Guesthouses: Minimalist "no-main-light" design; easy to install, remove, and maintain.
Product Details
