24V Isolated Constant-Voltage DC Power Supply for LED Strips

24V Isolated Constant-Voltage DC Power Supply for LED Strips

This 24V power supply for LED strips is designed with a specialized constant-voltage/constant-current LED driver chip. It features high efficiency, high reliability, low noise, energy conservation, eco-friendliness, a long service life, and robust resistance to electromagnetic interference and lightning surges. Perfectly suited for LED strip lighting, this unit delivers 100% of its rated power.Test Item Test Conditions Range Unit Remarks

Voltage Range  AC 185–265 V

Operating Frequency Standard 50–60 Hz

Input Current Vin = AC 176V ≤4 A

Input Power Vin = AC 220V ≤430 W

Power Factor Vin = AC 220V ≥0.5

Efficiency Vin = AC 220V ≥92%

Output Voltage AC 176–265V 24 V ±5%

No-load Voltage AC 176–265V 24 V ±5%

Operating Mode AC 176–265V Constant Voltage/Constant Current Mode  ±5%

Withstand Voltage Input to Output (AC) 1500 V 5mA/60s

Lightning Surge 0–270 degrees (AC) 1500 V 10s / 5 times

Test Load Tested with 24V 400W LED strips 24V ±5% Four 100W LED strips

Input/Output Input: 3 terminals (L, N, G) Output: 4 terminals (– – / + +)

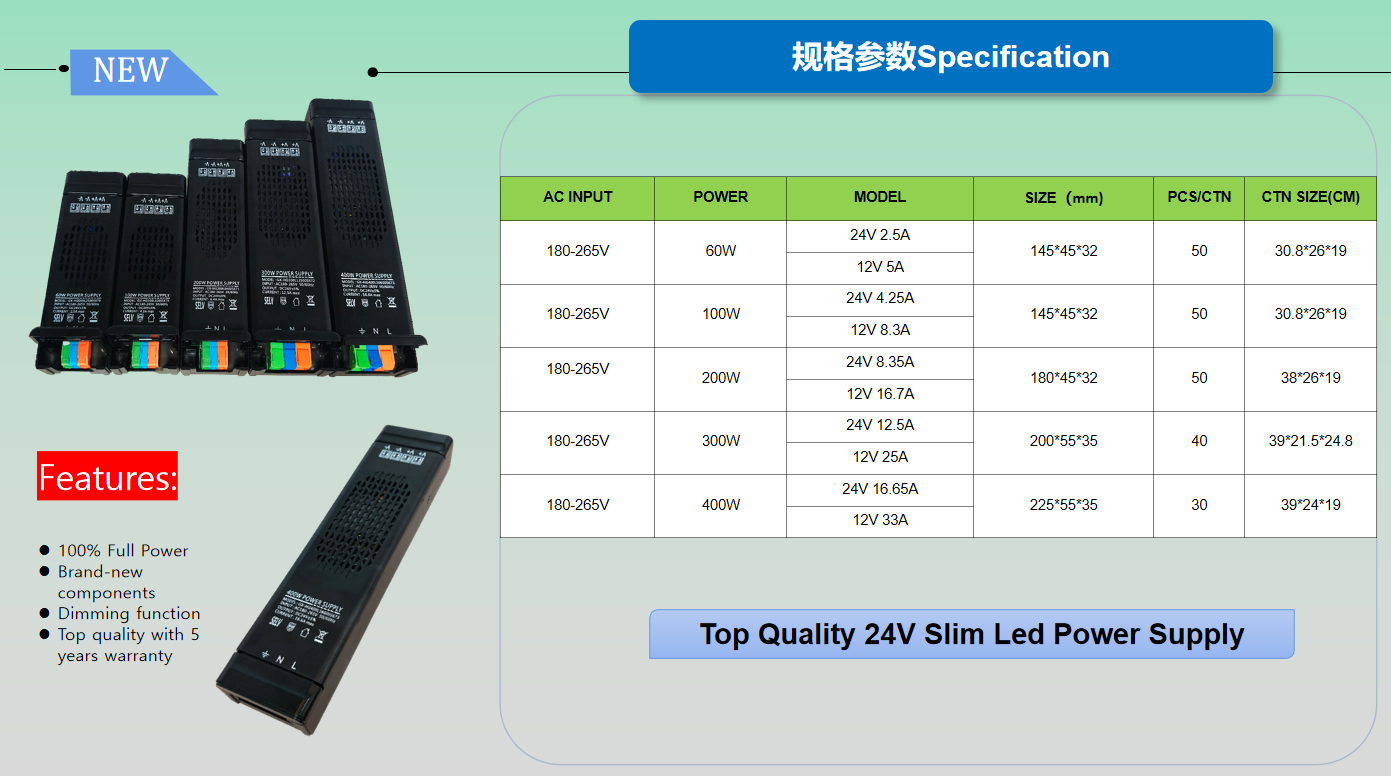

The available models of this LED switching power supply include 24V 60W, 100W, 200W, 300W, and 400W versions.
