36v 500w Switching Power Supply
  • 36v 500w Switching Power Supply36v 500w Switching Power Supply

36v 500w Switching Power Supply

Guangzhou Yuxiang as a professional R & D, production of 36v 500w Switching Power Supply manufacturers in China for many years, our 36V500W power supply solution is very mature, very stable operation, very reliable quality, cost-effective is perfect. We will provide you with the best after-sales service and timely delivery,You can buy with confidence. Products have been exported to Southeast Asia, Australia, South America, Africa, the Middle East, Europe and other countries and regions, sincerely look forward to working with you in the near future to create a better future!

Send Inquiry

Product Description

1, 36v 500w Switching Power Supply with new components, pure copper transformer, real materials and 100% real power, quality assurance.
2. 100% full-load aging test to ensure quality.
3, The product has multiple protection functions such as over-volt, over-load, over-temp, stable and reliable quality.
4, We provide 2 years warranty, excellent after-sales service.
5, You can safely buy customized and regular products from us.

Product Parameters

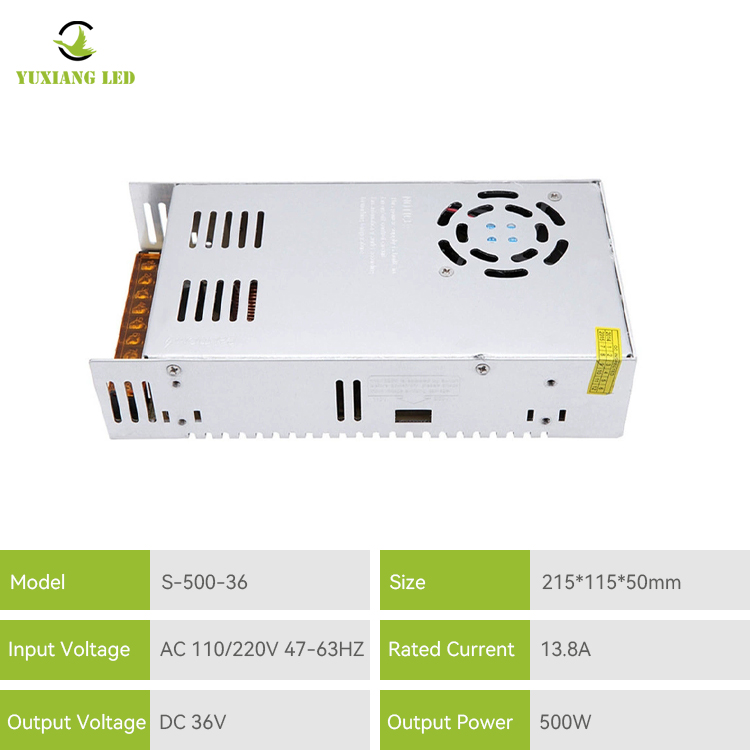

Product model:: S-500-36
Input voltage range:: AC 110/220V 47-63HZ
Output voltage:: DC 36V
Output current: 13.8A
Output power 500W
Output voltage accuracy 土2%
Work efficiency 85%
Dc voltage adjustable range -5% to +10% of the rated output voltage
Overload protection 105-150% hiccup mode, automatic recovery
Overvoltage protection 100-135% diode clamp, cut off output, automatic recovery
Operating temperature humidity -15°C~+60°C,20%-90%RH
Safety certification CE,ROHS
Product size 215*115*50mm
Product weight 0.80KG
Package/Weight 20PCS/CTN, 17KG


1, 36v 500w Switching Power Supply adopts thickened aluminum shell, durable, fast fan heat dissipation, Can better protect the power supply.
2, Circuit design and component layout scientific and reasonable to ensure product good performance & high quality.
3, The whole series of switching power supply is equipped with 110/220V , universal all the world, the factory default is adjusted to 220V input. (If your country 110vac input, please switch the input voltage into 110VAC by hand switch)
4, The power terminal adopts transparent protective cover, which can dust-proof, also reduce miscontact and make it safer to use.
5, Use high-quality potential regulator, can adjust the output voltage accurately.
6, Use high temperature resistant capacitance filter, large capacity, stable power supply.
7, switching power supply is widely used in led light letters, lamp strips and modules, led display, led lighting, 3D printing, automation equipment, lighting instruments, power, industrial control, traffic, network communication, security systems and other fields.


Product Details

Hot Tags: 36v 500w Switching Power Supply, China, Manufacturers, Suppliers, Factory, Cheap, Newest, High Quality, Wholesale, CE
