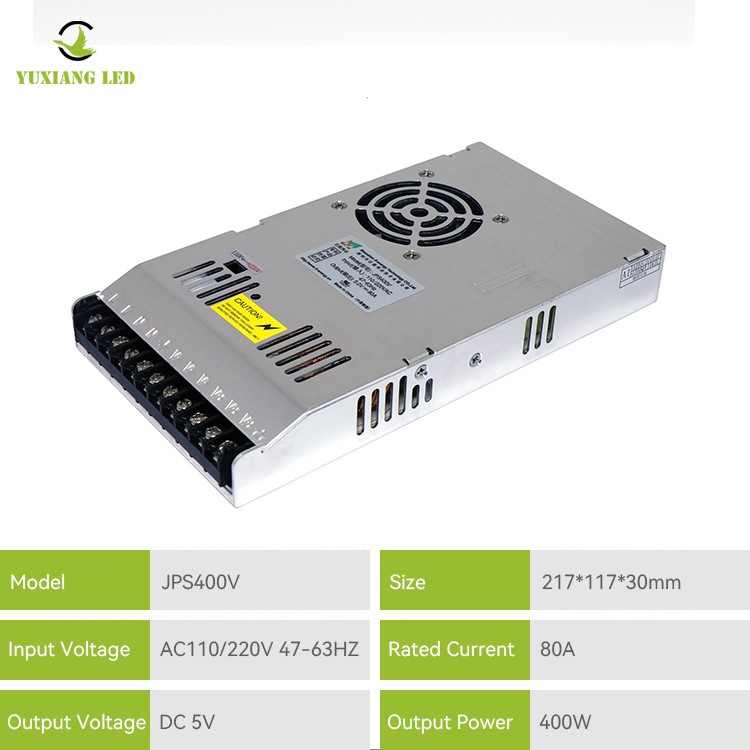

5V 80A 400W Led Display Screen Power Supply JPS400V

Product Description

1、The 5V 80A 400W Led Display Screen Power Supply JPS400V
has the characteristics of small volume, high efficiency, stable operation and high reliability.
2、The power supply has input under-voltage, output current limiting, output short circuit and so on.
3、 The synchronous rectifier circuit greatly improves the efficiency of the power supply and saves energy consumption.

Product Parameters

Product model	JPS400V
Input voltage range	AC110/220V 47-63HZ
Output voltage	DC 5V
Output current	80A
Output power	400W
Output voltage accuracy	2%
Work efficiency	85%
Dc voltage adjustable range	-5%~+10% -5% to +10% of the rated output voltage
Overload protection	105-150% hiccup mode, automatic recovery
Overvoltage protection	100-135% diode clamp, cut off output, automatic recovery
Operating temperature humidity	-30°C~+50°C，20%-90%RH
Safety certification	CE,ROHS
Product size	21711730mm
Product weight	0.73KG
/Package/Weight	10PCS/CTN, 7.95KG

Features：

1,This ultrathin 5V 80A 400W Led Display Screen Power Supply JPS400V
the appearance of the breathable design, the body heat dissipation is strong, durable.
2, Soft start current protection mechanism, effectively reduce AC input impact, effective short circuit protection.
3, Circuit design, component layout scientific and reasonable, to ensure product performance, high quality.
4, All copper coil, through the control resistance to increase the durability and stability of the product.
5, The product has overvoltage, overload, short circuit and other multiple protection functions, stable and reliable quality, longer service life.
6, We provide 2 years warranty, after-sales worry.
7, You can rest assured to buy regular or customized products from us, we look forward to working with you.
8,Switching power supply is widely used in LED light, LED advertising display, LED commercial display, outdoor large led color display, billboard and so on.

application
